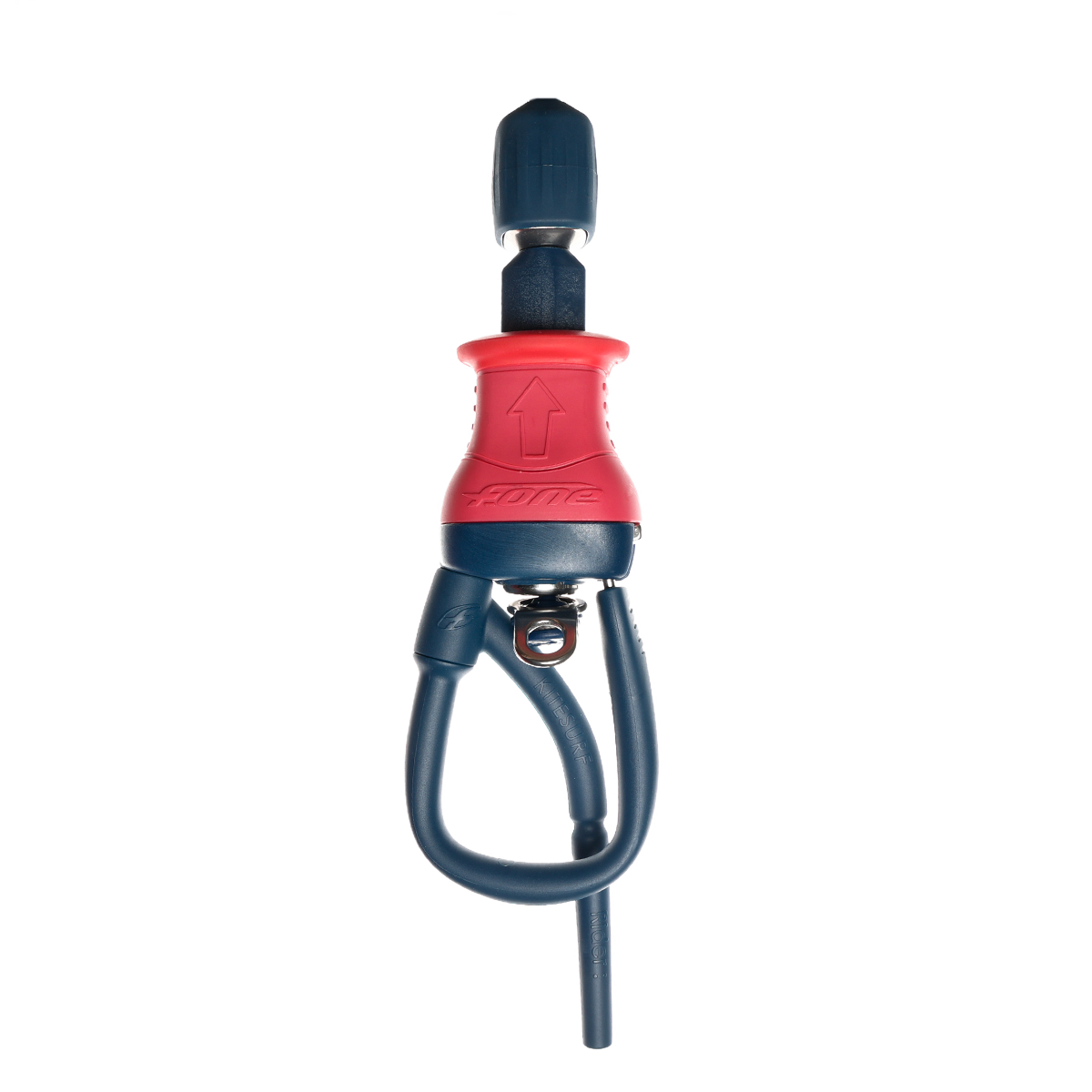

Push Away Quick Release 2022

The F-ONE Quick Release is intuitive, reliable, quick and easy.

AFNOR NORM: NF S 52-503

Ref. 77222-8001

Read more...

Technical Specifications

Designed to work effectively even in the most critical situations, it can be triggered under load but also when the lines are slack.

With an ergonomic shape, the release handle is easy to grab to trigger the system. A flange was added to the top of the handle to improve the grip. This flange was made of soft material for the best comfort of use.

The release and reset process is a two-handed process. When you slide the release handle away from you, it locks into position. To reset, you place the loop back into the gate, then raise the release handle with one hand and use the thumb of your other hand to push the locking gate down while letting go of the release handle to slide it back into place.

Dry and New
Pulling Force (kg) Release Force (kg) Release Time (?)
200 4,71 0.26
150 4,36 0.36
100 3,98 0.36
15,29 3,61 0.26
300,00 8,26
400,00 10,21
Dry Sand
Pulling Force (kg) Release Force (kg)
15,29 4,22
200 7,50
Sand Saturated Water
Pulling Force (kg) Release Force (kg)
15,29 6,53
200 5,96
Tested by the Laboratoire national de métrologie et d’essais (LNE)
