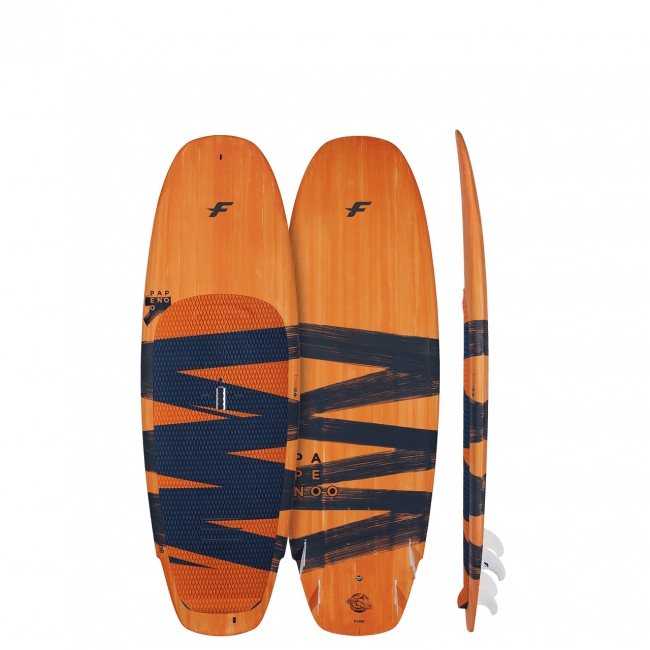

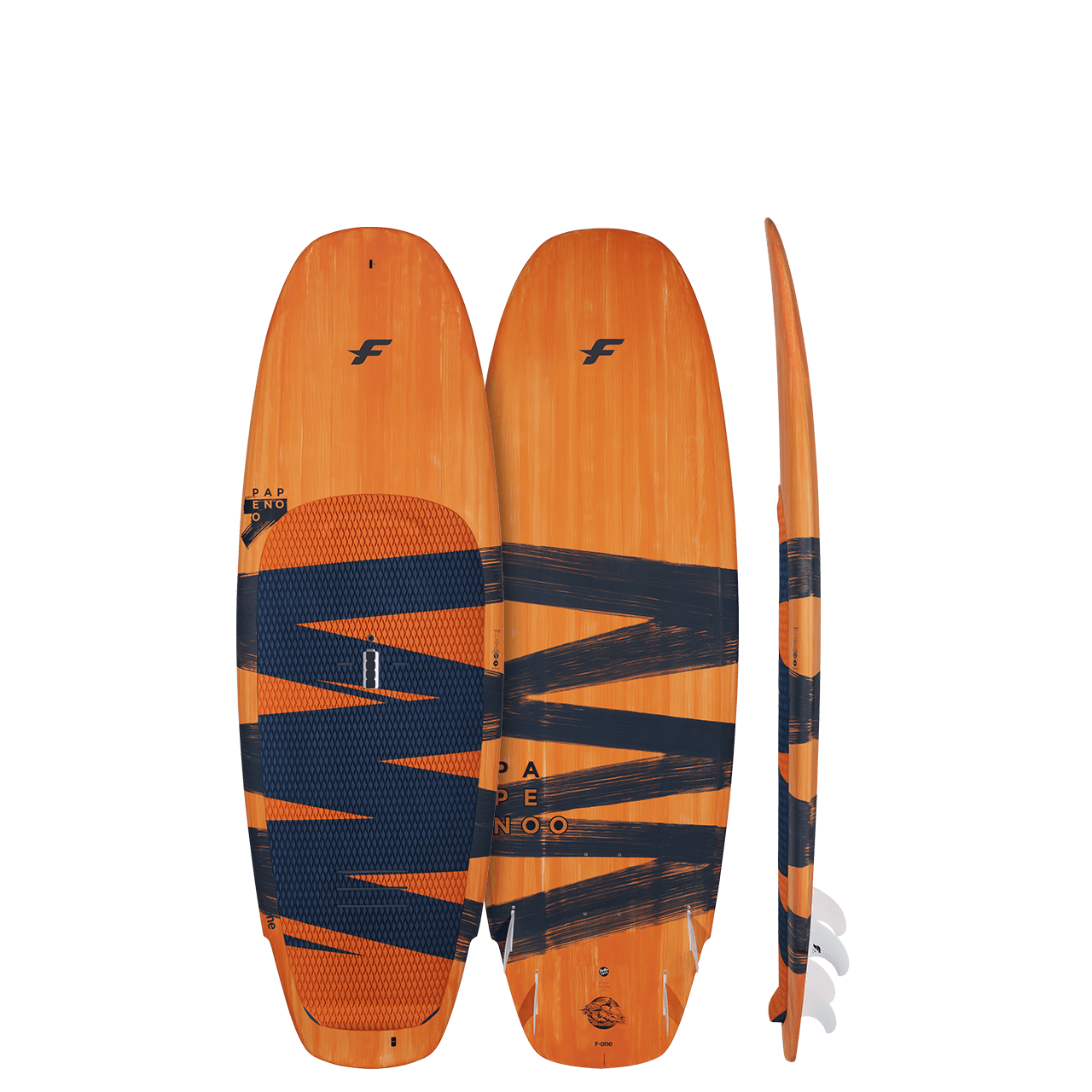

PAPENOO

Program : Compact Surf

Waves: Small to medium waves

  • Compact outline to pivot
  • Reactive in the turns
  • Excellent manoeuvrability
  • Foil ready

The PAPENOO range offers stability and maneuverability with the performance of a smaller board.

These boards integrate 4 M6 inserts on the hull to connect a foil with a top plate, so they are all “foil ready” without it increasing the weight too much or disrupts the ride.

Ref. 77205-0101

Read more...
PAPENOO 5

Program

100%
Wave
70%
Performance Wave
90%
Small/Beachbreak Wave
50%
Big wave

Technical Specifications

SHAPE

With its short straight outline and its large tail, the PAPENOO accelerates quickly in the small to medium waves. It generates speed to pass the soft sections and then reengages to hit the shoulder of the wave as soon as it is redrawn.

The rocker line is tailored for this short shape which resulted in straighter lines to get the speed while manoeuvrability is provided by the reduced length.

The shape evolves in 2020 with the addition of a winger in the outline.

This keeps the rails of the board fairly parallel in the central part offering a better planning / lift ratio and a better directional stability whilst paddling.
The PAPENOO is extremely maneuverable thanks to its narrower rear which drags less water.

The new PAPENOO reacts super quickly, goes faster, the bottom turns are easier with a better projection up the wave and the top turns are also easier with a tail that reduces drag.

CONSTRUCTION

The BAMBOO DECK construction has been proven for many years of production and offers a weight to resistance ratio with great reliability. The deck features a layer of bamboo to provide a tough impact and crushing resistance while the many layers of reinforcement on the bottom ensures solid strength.

  • BAMBOO Sandwich technology

    Our SUP boards benefit from the BAMBOO SANDWICH TECHNOLOGY construction. Every layer of bamboo is sandwiched between two layers of fiberglass or between a layer of carbon. This allows the sandwich technology to emphasize the characteristics of the bamboo. The final result is a light structure that is super strong and extremely reliable.
  • BAMBOO DECK

    Using a layer of bamboo only on the deck, this construction has been optimized to guarantee the board is as light as possible, all while ensuring strength and durability as well.
  • FOIL READY

    Foil compatible

  • INSERTS FOIL

    4-PT foil mount
    Distance 160 x 90 mm
    M6 Inserts
  • SMART HANDLE

    Featured on the whole F-ONE SUP hard boards range:
    the innovative and multifunction handle developed by F-ONE.

    The SMART HANDLE includes the following features :

    1 – Decompression valve
    2 – Multifunction tool compartment
    3 – Recessed volume
    4 – Screwdriver head
    – Allen key

    More comfortable with advanced ergonomics, it is completely recessed and makes it easier to carry the SUP. The new handle helps a lot to grab the boards easily when lying flat on the ground or on the water.

    A groove has been added onto the thread of the valve so that you only have to unscrew by a few turns to let the air out. No need to unscrew it completely and therefore no risk to lose it.

    The handle already includes the screw for the decompression valve (1).
    A specific multifunction tool has been created and fits neatly into the handle (2).

    The top part of the tool was designed to serve as a screwdriver to open or close the decompression valve.

    To prevent from oversight and to make sure the decompression valve is always closed when the SUP is in the water, a reminder has been included: you cannot fit the tool back into its place nor can you carry the board if you haven’t closed the decompression valve. Furthermore, the tool finds itself clipped on in this position. This was made to ensure the board can be transported without losing the tool. You therefore don’t have to look for the last place where you left the tool and can be sure that anyone grabbing your board will notice that the valve is not shut.

SIZE DIMENSION VOLUME WEIGHT DECK INSERTS FIN BOXES DELIVERED WITH
7’7’’x29” 231 x 74 Cm 110 L 7.7 Kg* GoPro + F-One Handle + Leash Plug Quattro + 4x M6 insert Futures V2JC1 460
+ QD2 400
7’11’’ x 30.5” 242 x 77 Cm 123 L 8.2 Kg* GoPro + F-One Handle + Leash Plug Quattro + 4x M6 insert Futures V2JC1 460
+ QD2 400
8’3’’ x 32” 250 x 81 Cm 138 L 8.9 Kg* GoPro + F-One Handle + Leash Plug Quattro + 4x M6 insert Futures V2JC1 460
+ QD2 400

*indicative value, subject to small variations due to the custom manufacturing process.
