LEVO CARBON 900

Designed for performance Windfoiling
Advanced stability and control
Fantastic speed potential
F-ONE Monobloc Carbon construction

80%

Take Off

90%

Stability

70%

Carving

90%

Speed

PRESENTATION
ASSEMBLY
Technology
Details
SIZES
User Manual

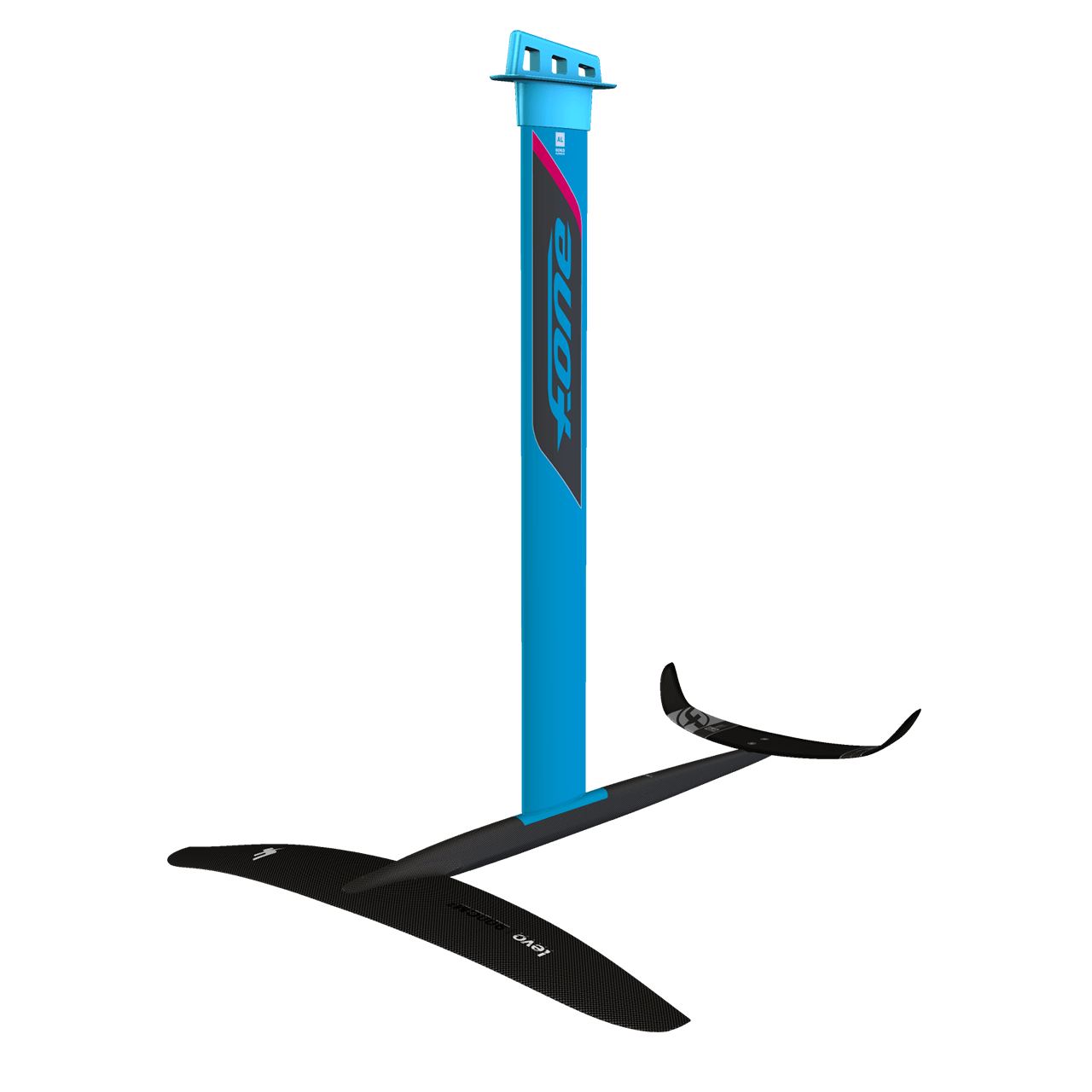

The Levo Carbon 900 offers real top-level performance with advanced control and the feel of a freeride foil to provide a unique feeling in flight.

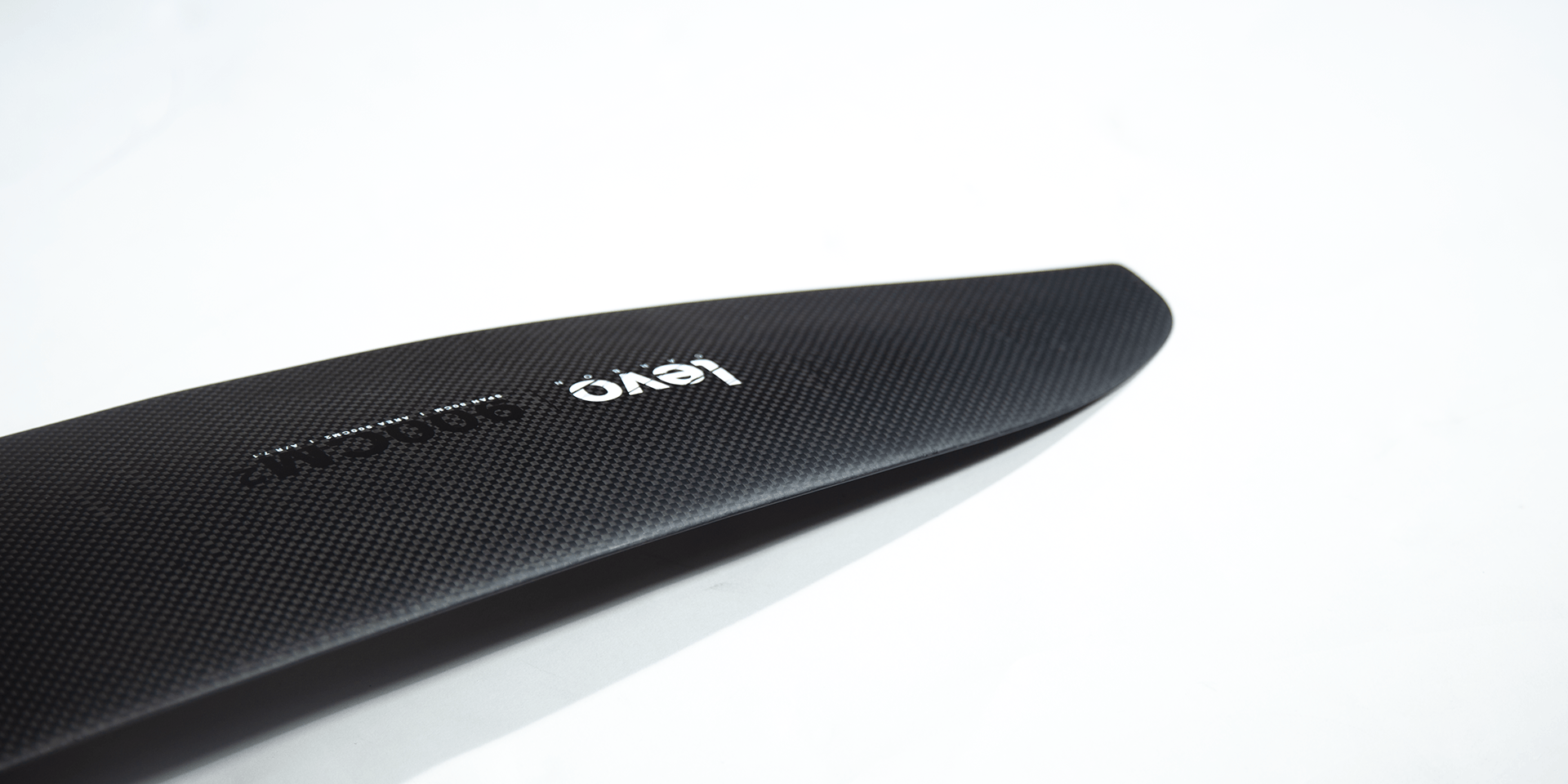

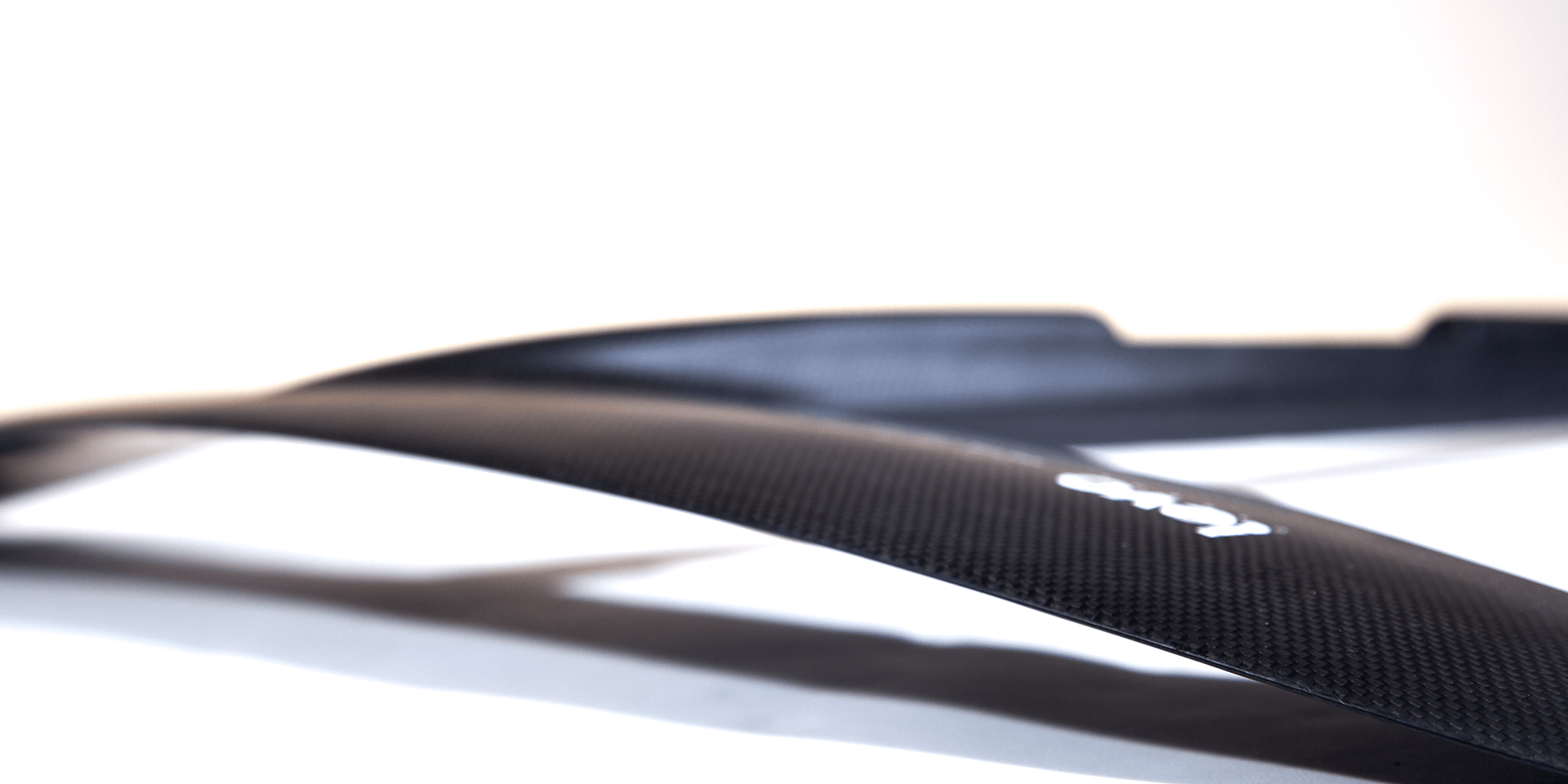

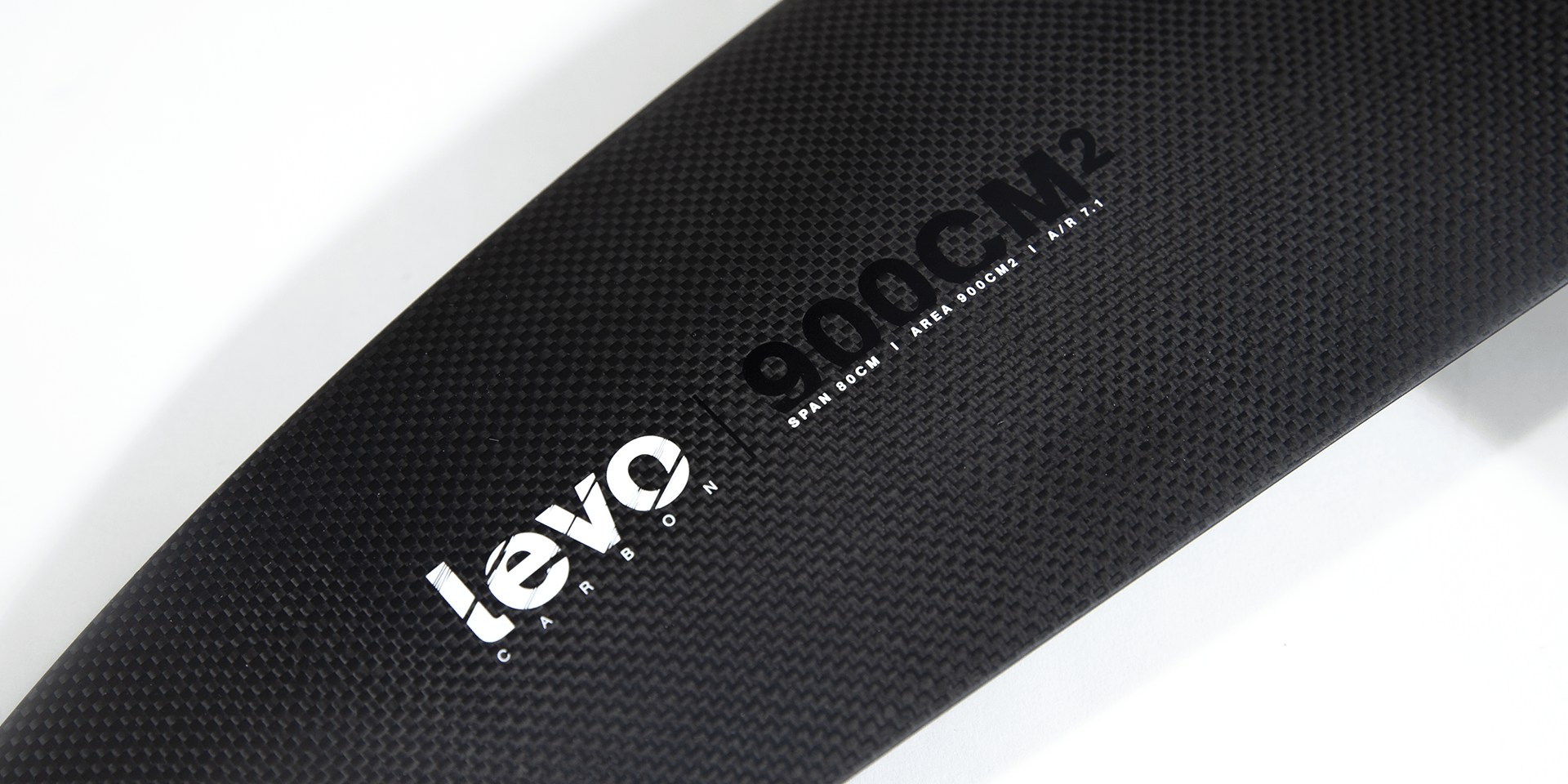

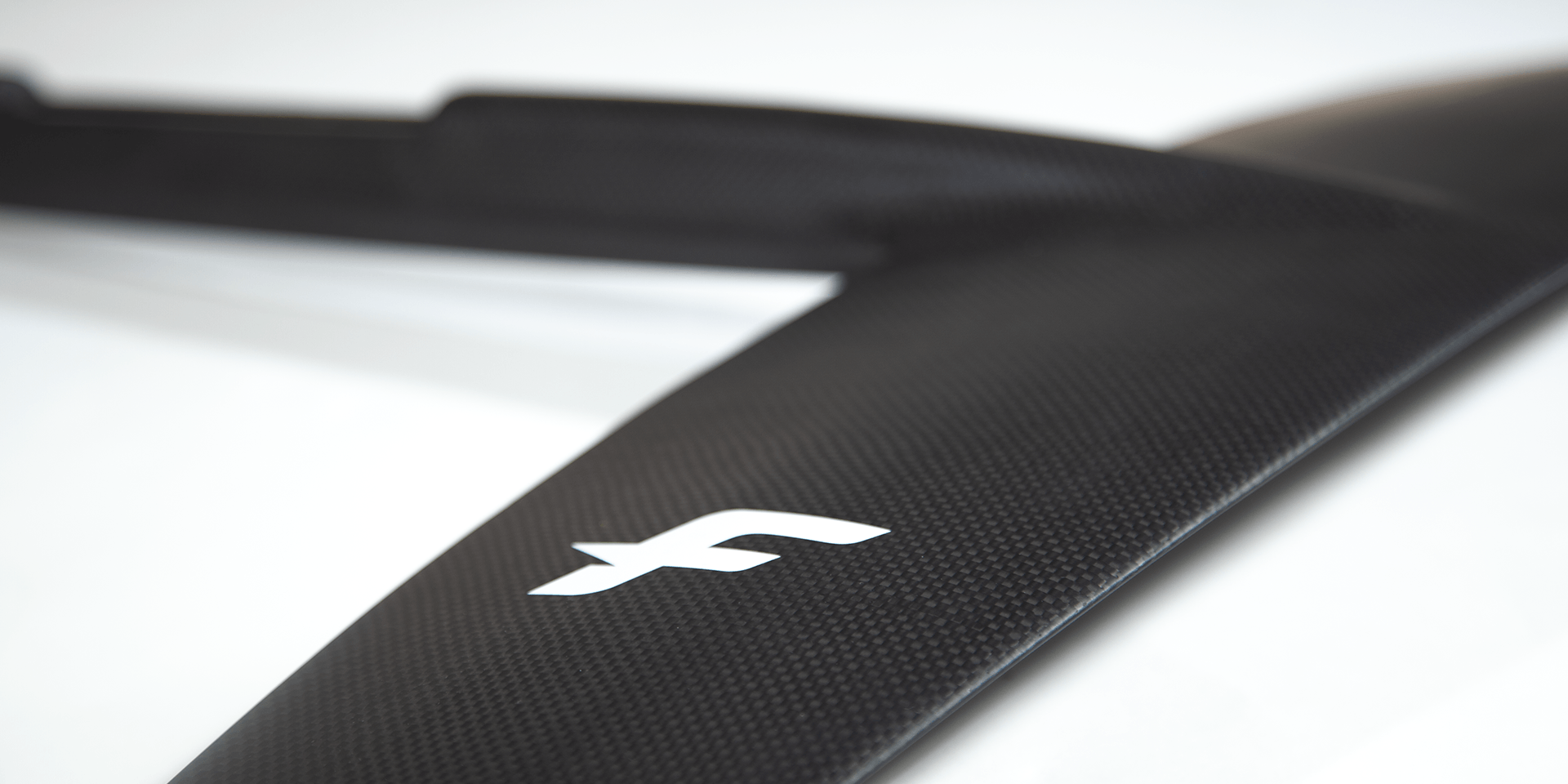

Built using carbon pre-preg with a Monobloc construction, the Levo Carbon 900 is not only truly glamorous to look at, it is also ultra-rigid from the wing to the mast to provide unmatched control and a very crisp feel of the foil.

The hydrodynamic design uses a slim racing profile with a high aspect ratio to reduce the drag. Twisted wing tips further helps with the tip vortex reduction. The mast position has been refined through testing with a variety of riders, boards and rigs to provide the most intuitive balance whatever the speed you’re flying at.

In flight, the foil is ultra-stable thanks to the span and proves easy to drive and control. The lift is solid, accelerations are sharp and power remains manageable because the foil is naturally well balanced at all speeds. A shim can be added under the stabilizer to tune the balance towards sailing at higher upwind and downwind angles that require more front foot pressure.

The curvy wing shape and shorter fuselage length means the foil is easy to roll into the curve when jibing. This makes all your turns more fun and your gybes more successful.

The ease of driving and the natural intuitive balance make the LEVO Carbon 900 very easy to apprehend while offering an amazing glide and performance potential.

TITAN CONNECTION

The TITAN connection enables a very stiff and direct connection between two parts, locking efficiently any movement in all directions.
Its format is compact which is hydrodynamically efficient and very easy to use, assemble and disassemble.
PRE PREG TECHNOLOGY

Pre-preg makes the foils stiffer and stronger. With pre-preg fabrics, the carbon fiber is directly impregnated with epoxy resin by its manufacturer. This guarantees a perfect ratio between epoxy and carbon and represents the highest quality process. It is then cured at high temperature, bringing strength and durability.

Quality control is much better and so is the working environment for the people building our foils. Pre-preg fabrics offer the lightest weight with the best mechanical properties of carbon fiber.
MONOBLOC FRONT WING

Having a stiff and solid assembly between all the parts of the foil is key to making it perform at its best as well as easy to handle.

The connection of the front wing with the fuselage is highly stressed and loaded, so it is one of the critical areas of the assembly in terms of structures.

The Monobloc front wings are molded together with the fuselage in one shot, thereby removing the connection and the chances for unwanted and parasitic movements.

The structural fibers of the fuselage are spread into the wing to achieve the smoothest and lightest connection.

It is also incredibly stiff and provides absolute control at all times, with the foil responding perfectly to all of the riders’ input.

When the overall dimensions are too large for convenient transportation, a connection is set into the fuselage, behind the mast where the loads are smaller.

TITAN MAST FOOT

The TITAN mast foot is the connecting part that makes the F-ONE aluminium masts compatible with all TITAN fuselages and wings.

It is made of 6061 aluminium, CNC machined with high precision and fully anodized. To install the TITAN mast foot, it should be inserted into the bottom end of the aluminium mast and fastened with two M6x25mm tapered head screws.
Stab C300

Versatile and progressive, the C300 stabilizer can be combined with any front wings and fits a very large range of practices.

Equipped with generous winglets, the stabilizer blade offers fantastic control with enough surface area to provide full confidence in all situations.
Built in Carbon Composite and designed to be securely mounted on F-ONE fuselages, its profile and angle of incidence were tuned to achieve a very intuitive balance which will help you get your foiling maneuvers in more easily.
Alu Mast 75 > 85 cm

The F-ONE aluminium mast can be used for all disciplines, kite, surf, sup and windsurf.

The profile is extruded with precision from 6063 aluminium block. The shape of its section benefits from our years of experience in kitefoiling to provide the best gliding feel while keeping the strength up and the weight down. It comes with two stainless steel helicoil inserts at the bottom and at the top to fasten the connecting parts and is therefore fully modular. The aluminium mast can be used on every foil of the range and it is very easy to jump from one length to another. A number of parts are available for board connection (Plate, KF, Deep KF, Tuttle).
