GRAVITY CARBON

The GRAVITY CARBON foils are very easy and stable to learn on and progress with. They are designed to provide a solid lift with a progressive take-off, and are of great use for any rider in light and small conditions.

  • Aspect Ratio: 5.0
  • Accessible and straightforward foil
  • Smooth and early take-off
  • Stability, speed control, and lift
  • Reliable and efficient in light conditions

Available in 1800 cm² / 2200 cm²

Ref.77207-0813/77207-0114

Read about how to choose your foil

Read more...
GRAVITY CARBON 1800 2

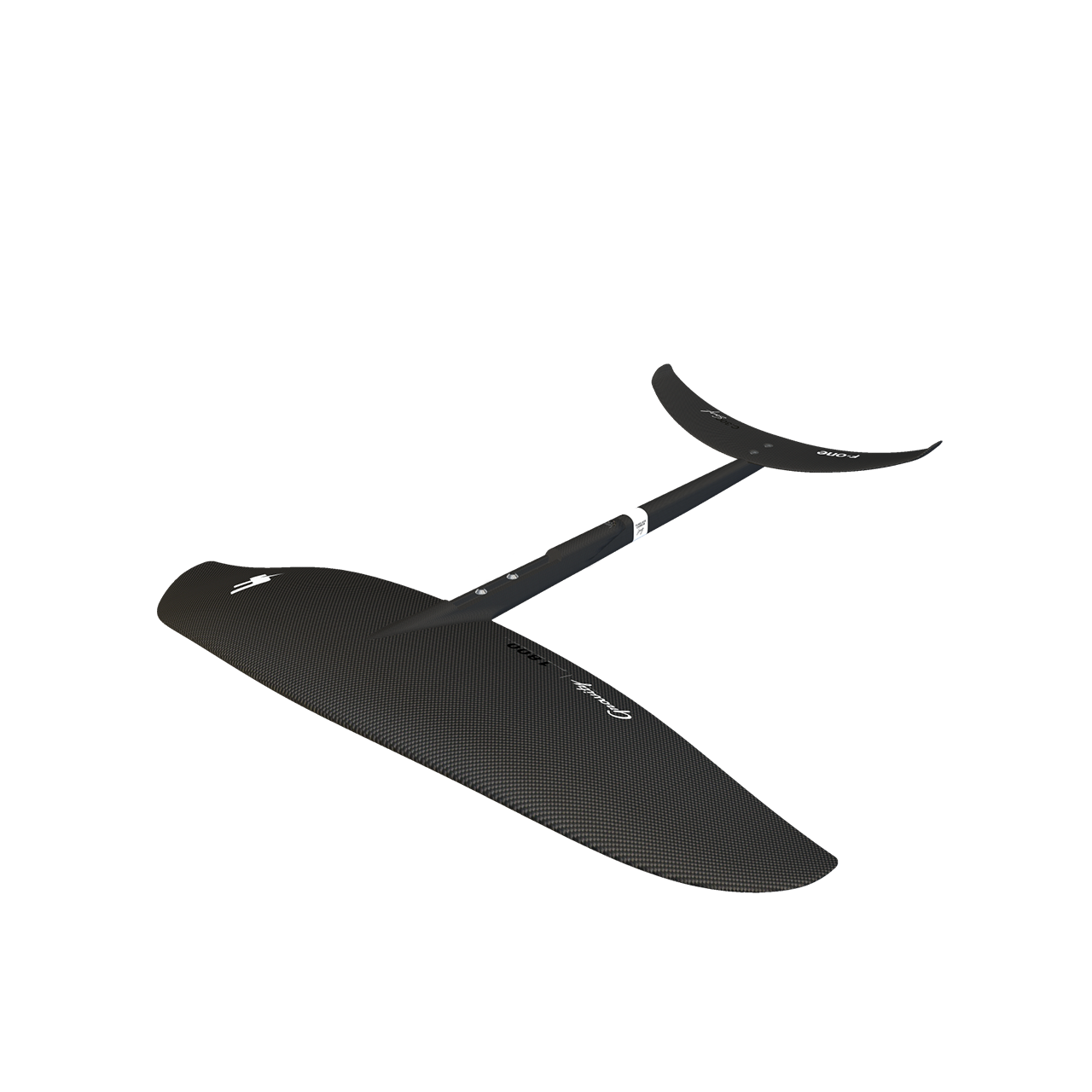

Plane

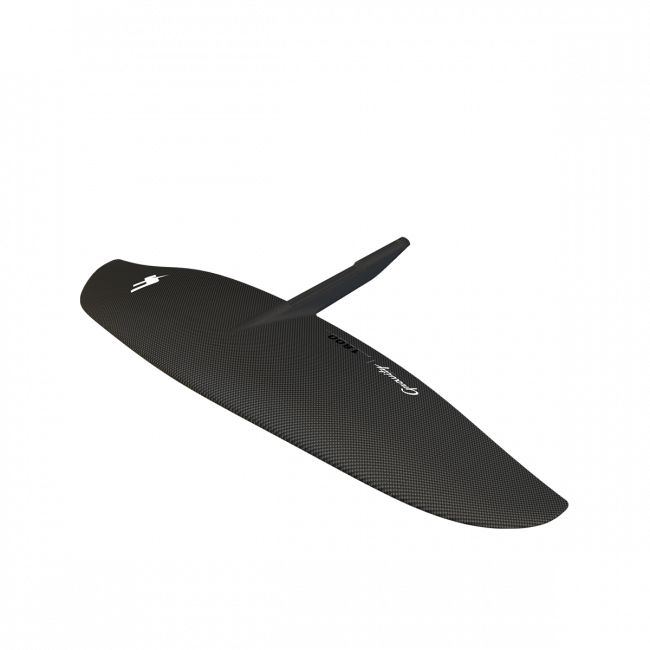

GRAVITY CARBON 1800 Front wing
1800

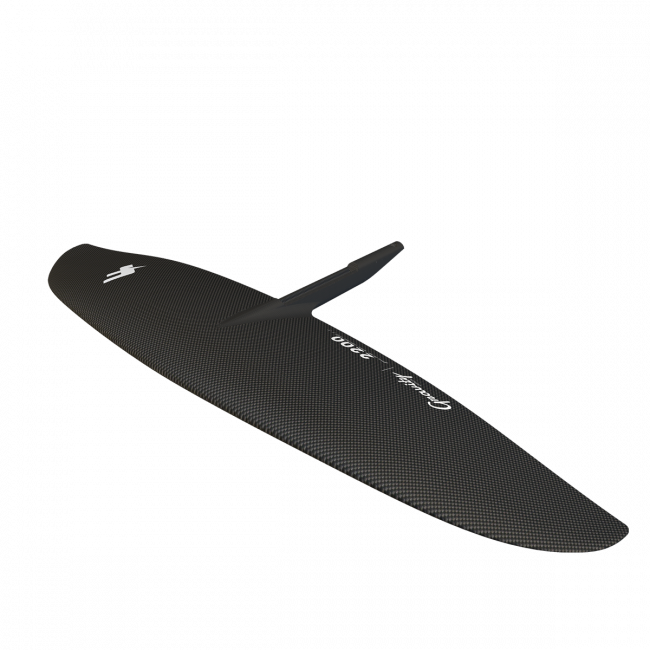

GRAVITY CARBON 2200 Front wing
2200

Program

90%
Low end
30%
Speed
85%
Maneuverability
30%
Pumping

Technical Specifications

A GRAVITY foil is intuitive. It generates lift at low —and even very low— speed but does it smoothly so you can easily keep your balance. These front wings are designed to be easy to roll and turn and are highly maneuverable.

The GRAVITY CARBON is a great beginner foil, but also simultaneously terrific for heavier or more experienced riders looking to get out in light or unstable conditions.

The range now includes two sizes: 1800 and 2200 cm². Foils with such areas support an early take-off and more lift and stability. However, we still made sure they also come with enough aspect ratio to maintain a decent speed range and to avoid unnecessary drag. Their massive span allows you to control low speeds, and these foils also turn and carve well.

Built using the Monobloc structure with pre-preg carbon, the foils are both very light and strong. This setup brings improved load transmission and better stiffness throughout the different parts for maximum control. The TITAN connection allows to plug in either an aluminum or carbon mast, and the fuselage is split in two to facilitate transport.

AREA (cm²) SPAN (cm) ASPECT RATIO WEIGHT (kg)
GRAVITY CARBON 1800 1800 90 4.6 1.95
GRAVITY CARBON 2200 2200 110 5.5 2.15

GRAVITY CARBON 1200 2

How to choose your plane ?

FW GRAVITY CARBON 1800 GRAVITY CARBON 2200
FUSELAGE CARBON LONG CARBON LONG
STAB C275 SURF C275 SURF

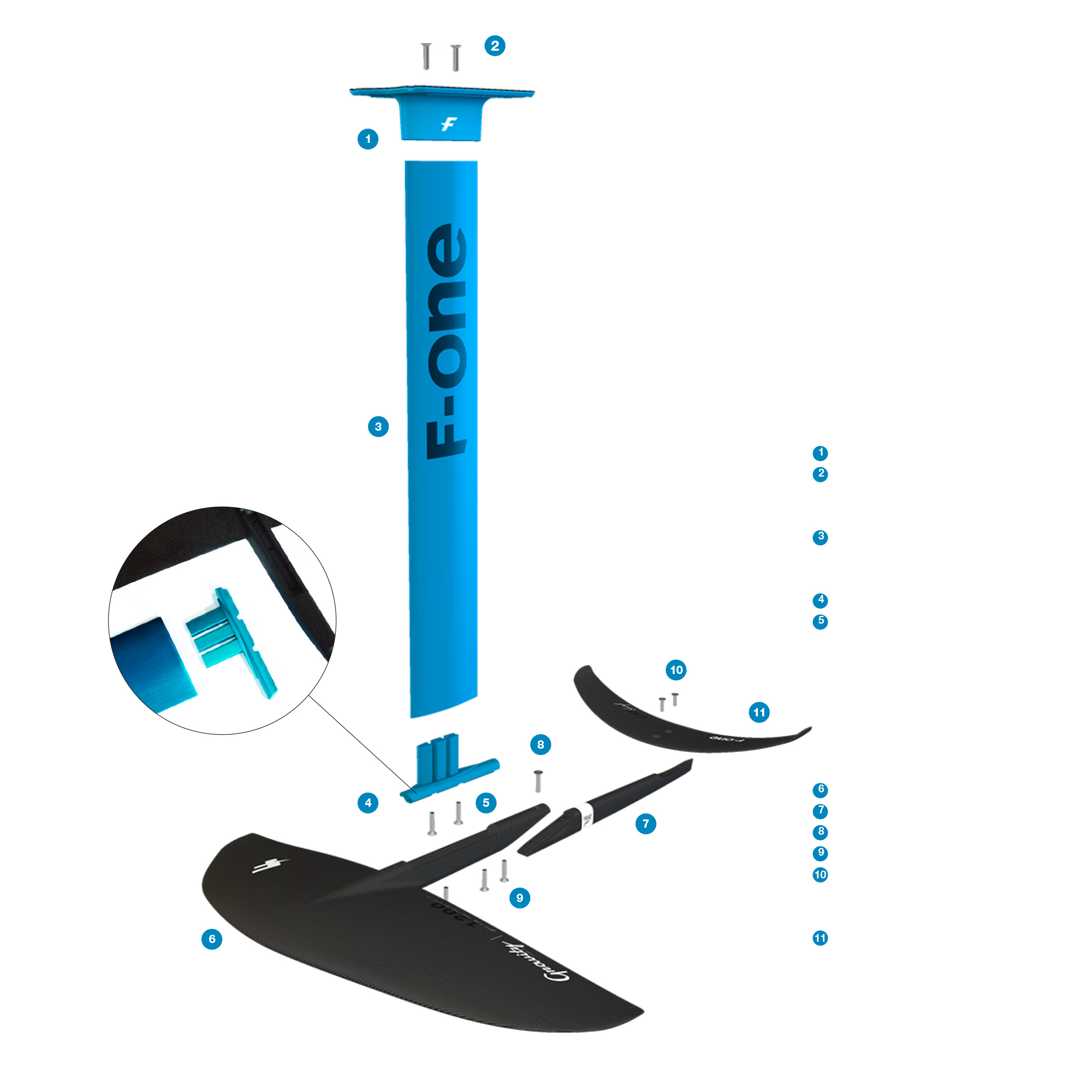

ITEMS

FW GRAVITY CARBON

EVA Soft cover

Packaging kit :

  1. Screws : 3x M6-32mm + 2x M6-25mm tapered head screws
  2. Tool : Torx key
  3. User Guide
  • 2024 HYDROFOILS CARBON

3D view
