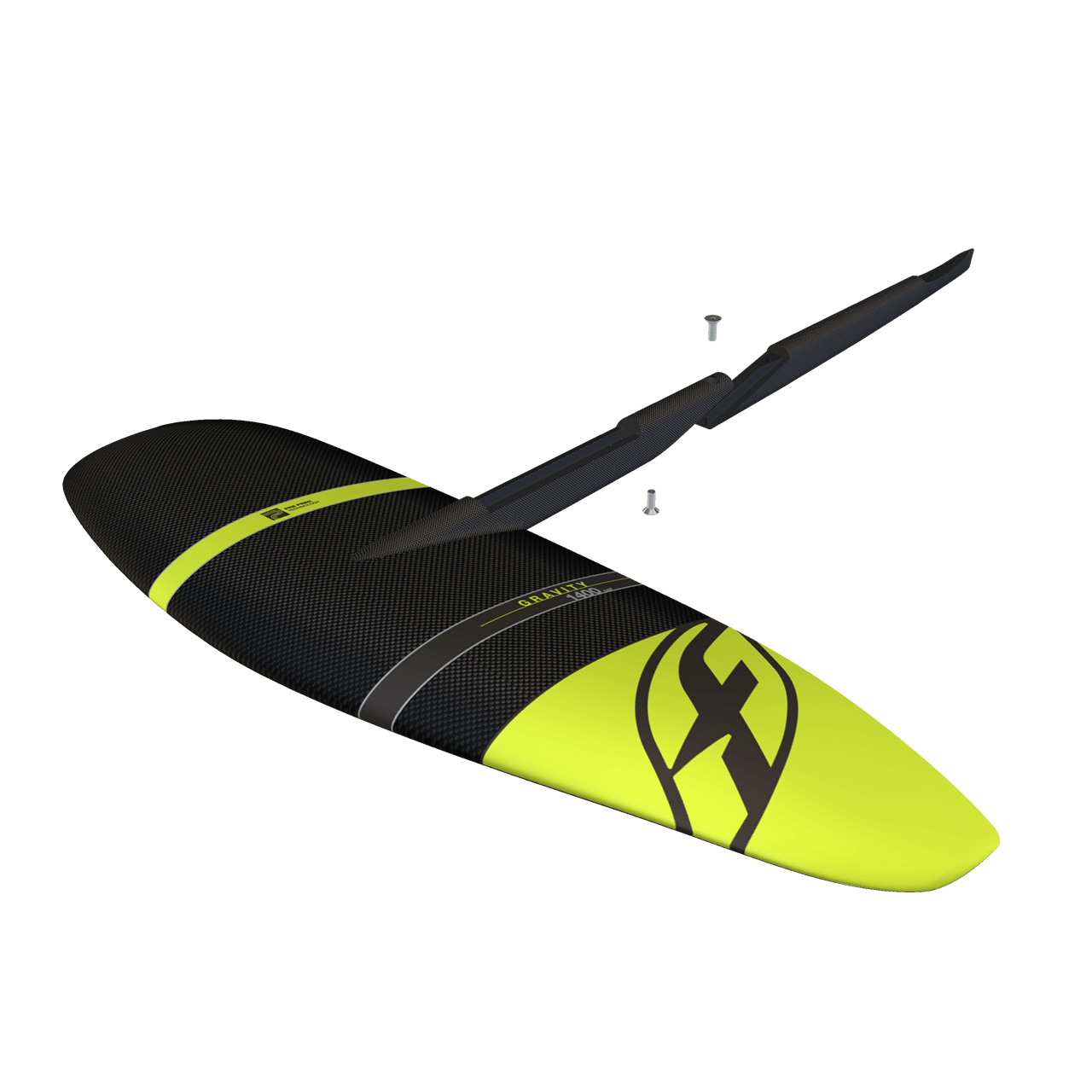

GRAVITY 1400

The F-ONE GRAVITY 1400 wing is ideal to learn how to surf foil, enjoy the smallest waves and also venture on a downwinder.

  • Low speed take-off
  • Very stable
  • Superior glide

Area : 1480 cm3
Aspect Ratio : 4.3

Read more...
GRAVITY 1400

Program

90%
Take Off
100%
Stability
90%
Carving
70%
Speed

Technical Specifications

Its design is a significant evolution from our previous 1200 wing

  • Optimized connection with our integrated Titan Connection especially developed for larger wings
  • new and thicker section profile for an early and very progressive lift-off
  • evolution of the arch and rake of the wing to best combine maneuverability and control

Design targets ease of use to surf and carve some lines:

  • Early lift for take-off
  • Easy entry into the turns for some intuitive lines
  • Perfect maneuverability allowing sharp turns
  • Total speed control to master your surf

Targeted at people who want a wing to foil on a variety of waves from small and mellow to taller and faster.

Very fluid through the turns, allowing to draw tight or long curves with good speed control and good pumping to go after the next wave.

Built with pre-preg carbon for the best weight to strength ratio, with a super light core.

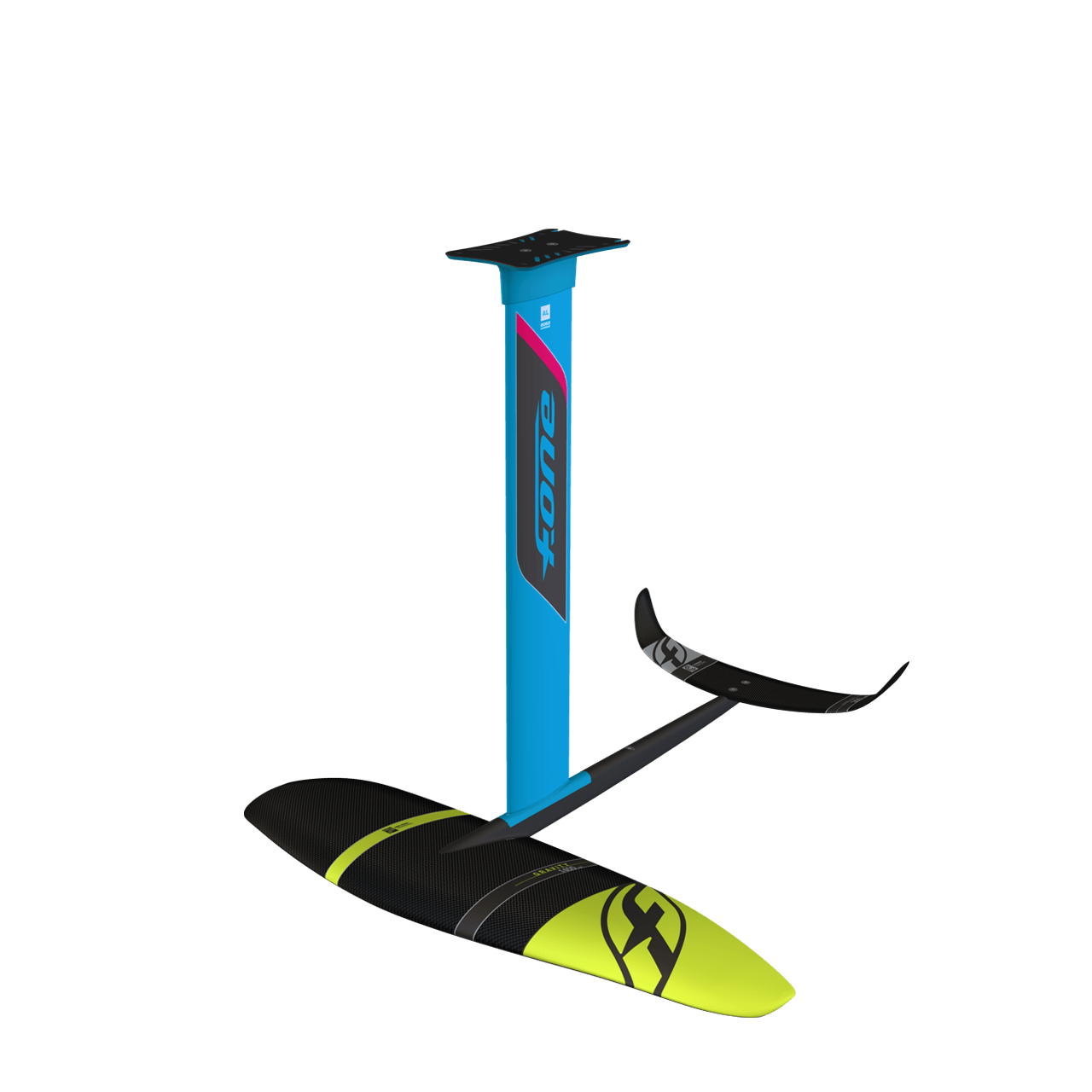

Titan Connection: the wing connects directly to the mast via the Titan mast foot and the fuselage is split in two parts in order to simplify transportation. This setup offers better load transmission and better stiffness throughout the different parts for maximum control.

GRAVITY 1400 2

  • Gravity 1400 Wing

    Designed for early lift, great stability and efficient pumping:

    – Optimized connection with our integrated Titan Connection especially developed for larger wings
    – New and thicker section profile for an early and very progressive lift-off
    – Larger area with increased span and higher aspect ratio

    Design targets ease of use to surf and carve some lines:
    – Easy take-off at low speed, ideal for the smallest waves
    – Great stability thanks for the larger span
    – Good turning ability in waves and bumps
    – Superior glide on downwinders

    Area: 1400 cm3
    Aspect Ratio: 4.3

  • Stab C300

    Versatile and progressive, the C300 stabilizer can be combined with any front wings and fits a very large range of practices.

    Equipped with generous winglets, the stabilizer blade offers fantastic control with enough surface area to provide full confidence in all situations.
    Built in Carbon Composite and designed to be securely mounted on F-ONE fuselages, its profile and angle of incidence were tuned to achieve a very intuitive balance which will help you get your foiling maneuvers in more easily.

  • Alu masts 45 > 85 cm

    The F-ONE aluminium mast can be used for all disciplines, kite, surf, sup and windsurf.

    The profile is extruded with precision from 6063 aluminium block. The shape of its section benefits from our years of experience in kitefoiling to provide the best gliding feel while keeping the strength up and the weight down. It comes with two stainless steel helicoil inserts at the bottom and at the top to fasten the connecting parts and is therefore fully modular. The aluminium mast can be used on every foil of the range and it is very easy to jump from one length to another. A number of parts are available for board connection (Plate, KF, Deep KF, Tuttle).

  • Carbon mast 65 cm

    The F-ONE Carbon masts provide amazing speed potential with top precision in all conditions.

    With their high-performance profile evolving from 1.2 cm thick at the bottom to 1.35 cm at the top, these masts deliver an impressive feeling of glide and top of the range performance. The intricate profile and chord length prevent turbulence and make them very secure and stable at speed. Their elaborate carbon PRE-PREG one-shot molding construction makes sure these masts meet the required demand on torsion and bending stiffness to keep the control of the foil at any moment and especially when pushing hard.

    Equipped with a built-in TITAN mast foot, the carbon masts are compatible with all TITAN fuselage our Wings. Available in 65cm length with tuttle head and lighter layup or in 85cm, 95cm and 105 with stiffer layup including some high modulus carbon and a deep tuttle head.

    Section thickness: 12mm (bottom) / 13.5mm (top)
    Section chord: 110mm (bottom) / 135mm (top)

  • GRAVITY FOIL Equipment

    EVA COVER
  • Gravity manual
