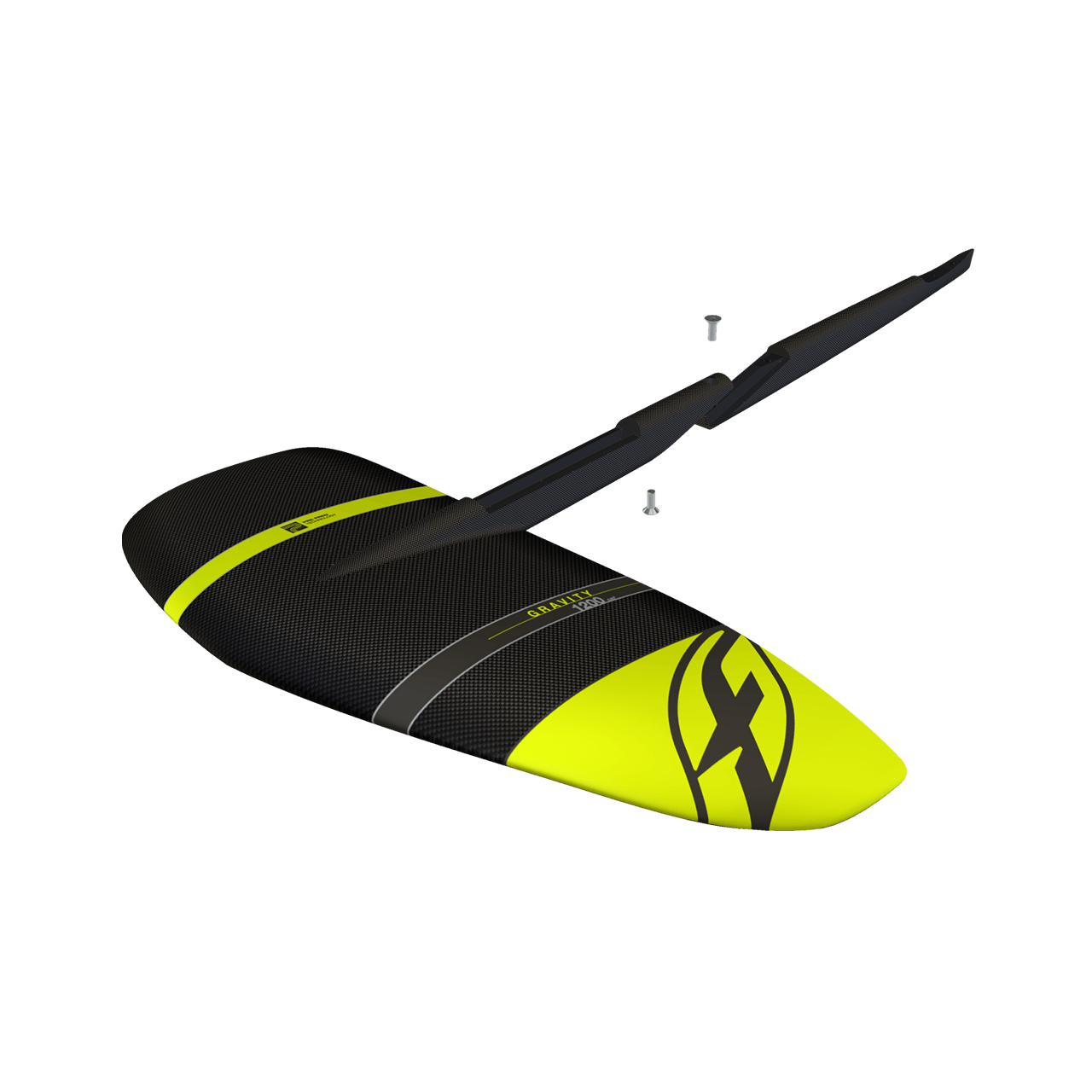

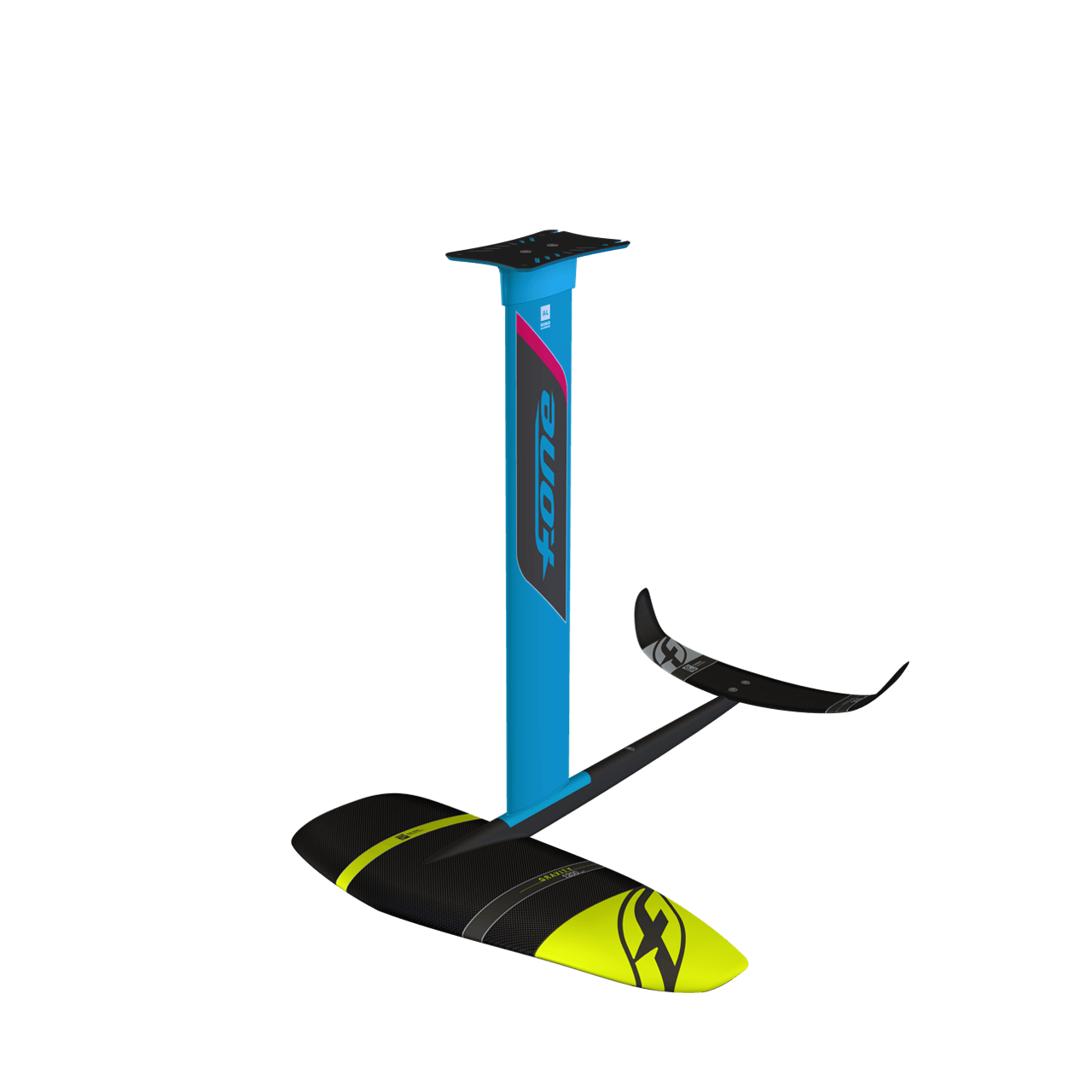

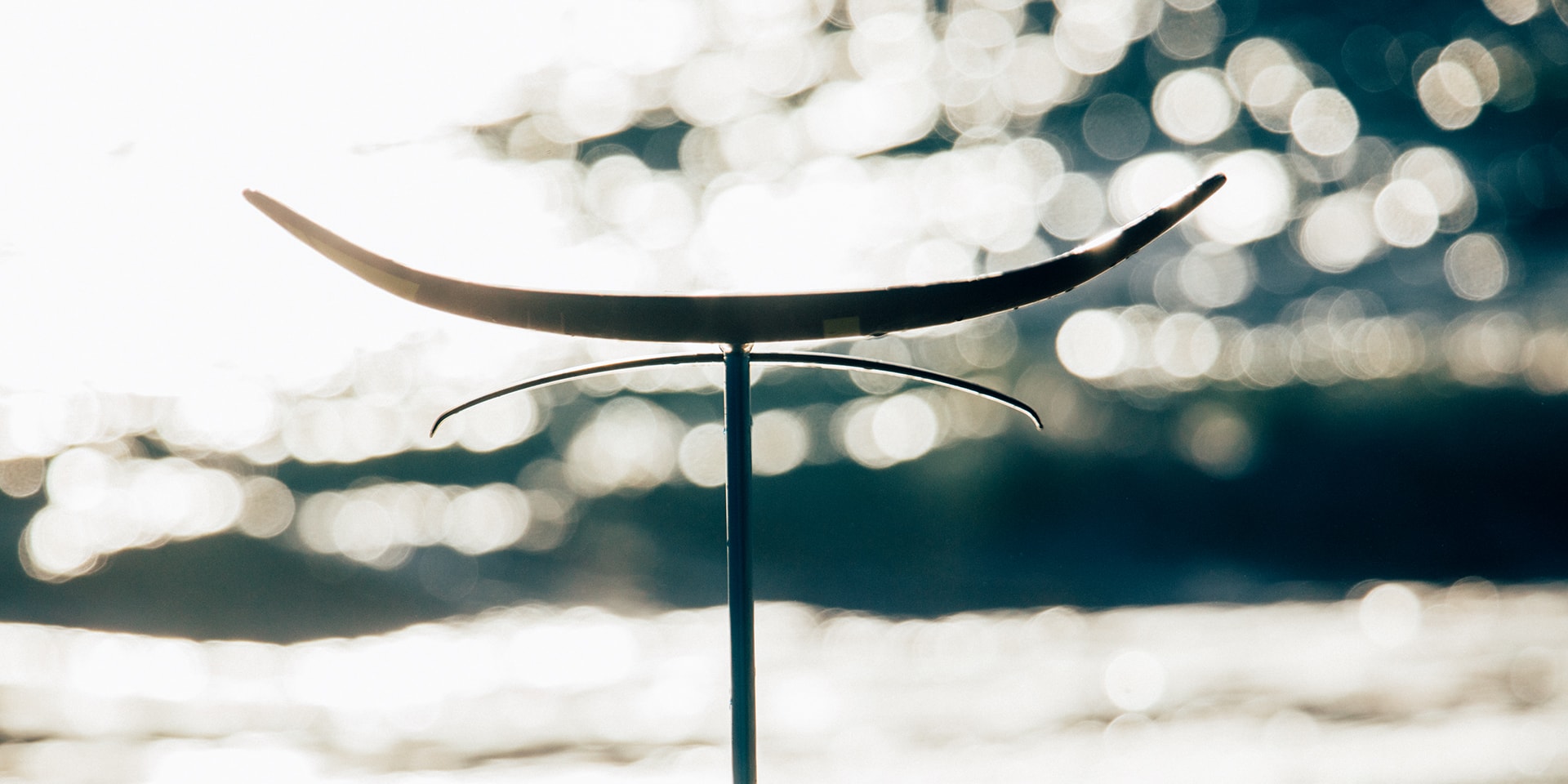

GRAVITY 1200

Quality control is much better and so is the working environment for the people building our foils. Pre-preg fabrics offer the lightest weight with the best mechanical properties of carbon fiber.

– Optimized connection with our integrated Titan Connection especially developed for larger wings
– new and thicker section profile for an early and very progressive lift-off
– evolution of the arch and rake of the wing to best combine maneuverability and control

Design targets ease of use to surf and carve some lines:
– Early lift for take-off
– Easy entry into the turns for some intuitive lines
– Perfect maneuverability allowing sharp turns
– Total speed control to master your surf

Area: 1200 cm²
Aspect Ratio: 3.2

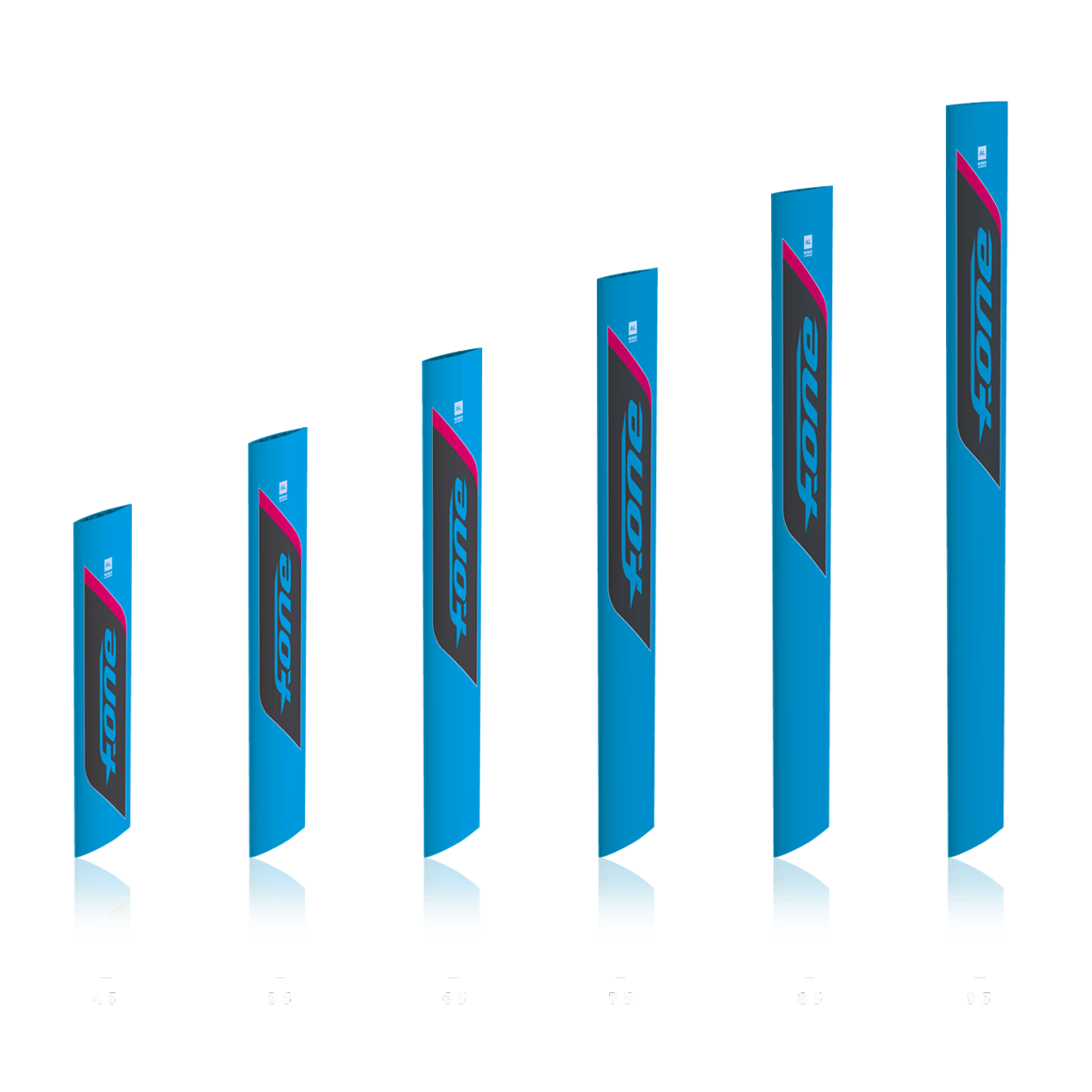

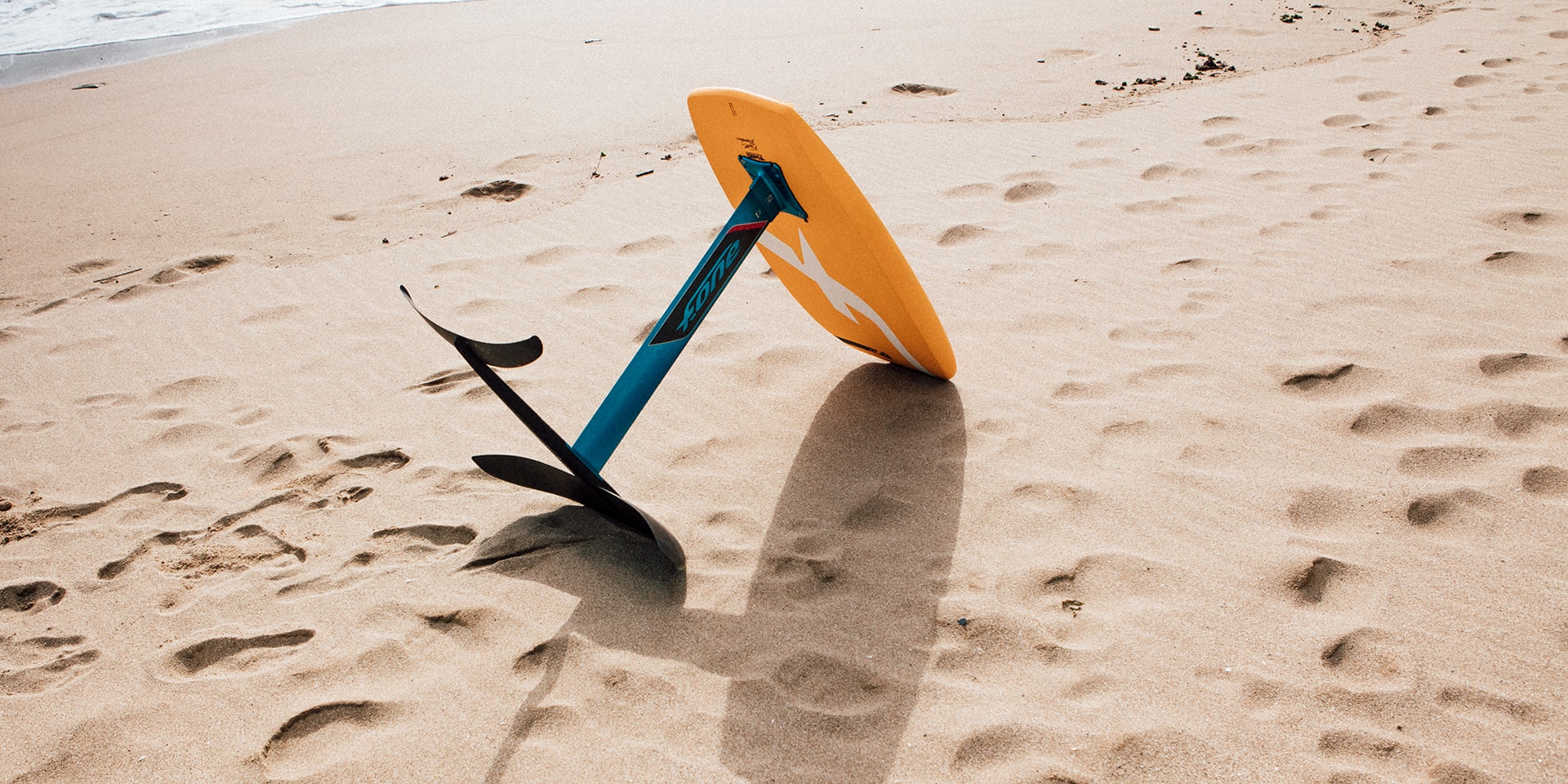

The profile is extruded with precision from 6063 aluminium block. The shape of its section benefits from our years of experience in kitefoiling to provide the best gliding feel while keeping the strength up and the weight down. It comes with two stainless steel helicoil inserts at the bottom and at the top to fasten the connecting parts and is therefore fully modular. The aluminium mast can be used on every foil of the range and it is very easy to jump from one length to another. A number of parts are available for board connection (Plate, KF, Deep KF, Tuttle).

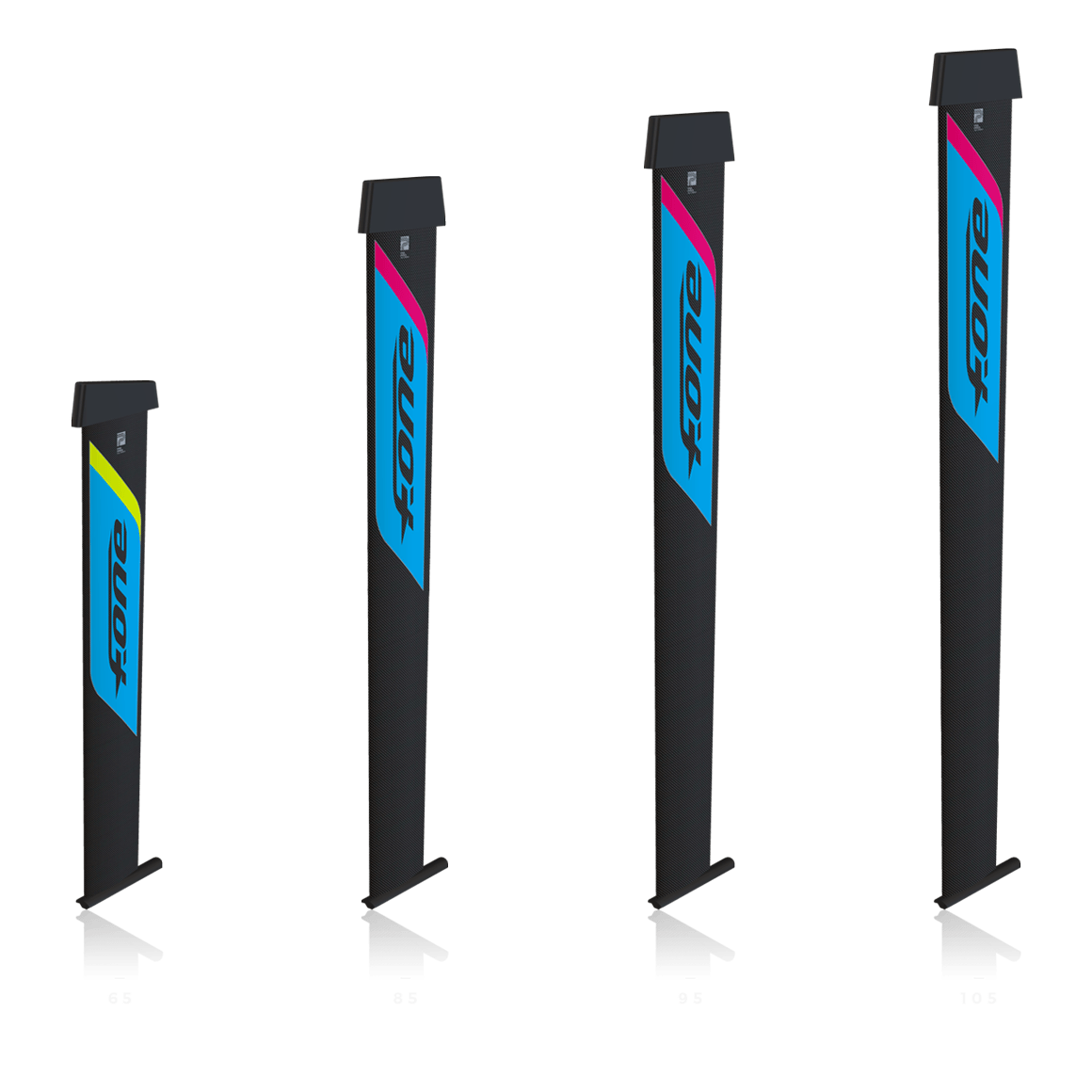

With their high-performance profile evolving from 1.2 cm thick at the bottom to 1.35 cm at the top, these masts deliver an impressive feeling of glide and top of the range performance. The intricate profile and chord length prevent turbulence and make them very secure and stable at speed. Their elaborate carbon PRE-PREG one-shot molding construction makes sure these masts meet the required demand on torsion and bending stiffness to keep the control of the foil at any moment and especially when pushing hard.

Equipped with a built-in TITAN mast foot, the carbon masts are compatible with all TITAN fuselage our Wings. Available in 65cm length with tuttle head and lighter layup or in 85cm, 95cm and 105 with stiffer layup including some high modulus carbon and a deep tuttle head.

Section thickness: 12mm (bottom) / 13.5mm (top)
Section chord: 110mm (bottom) / 135mm (top)

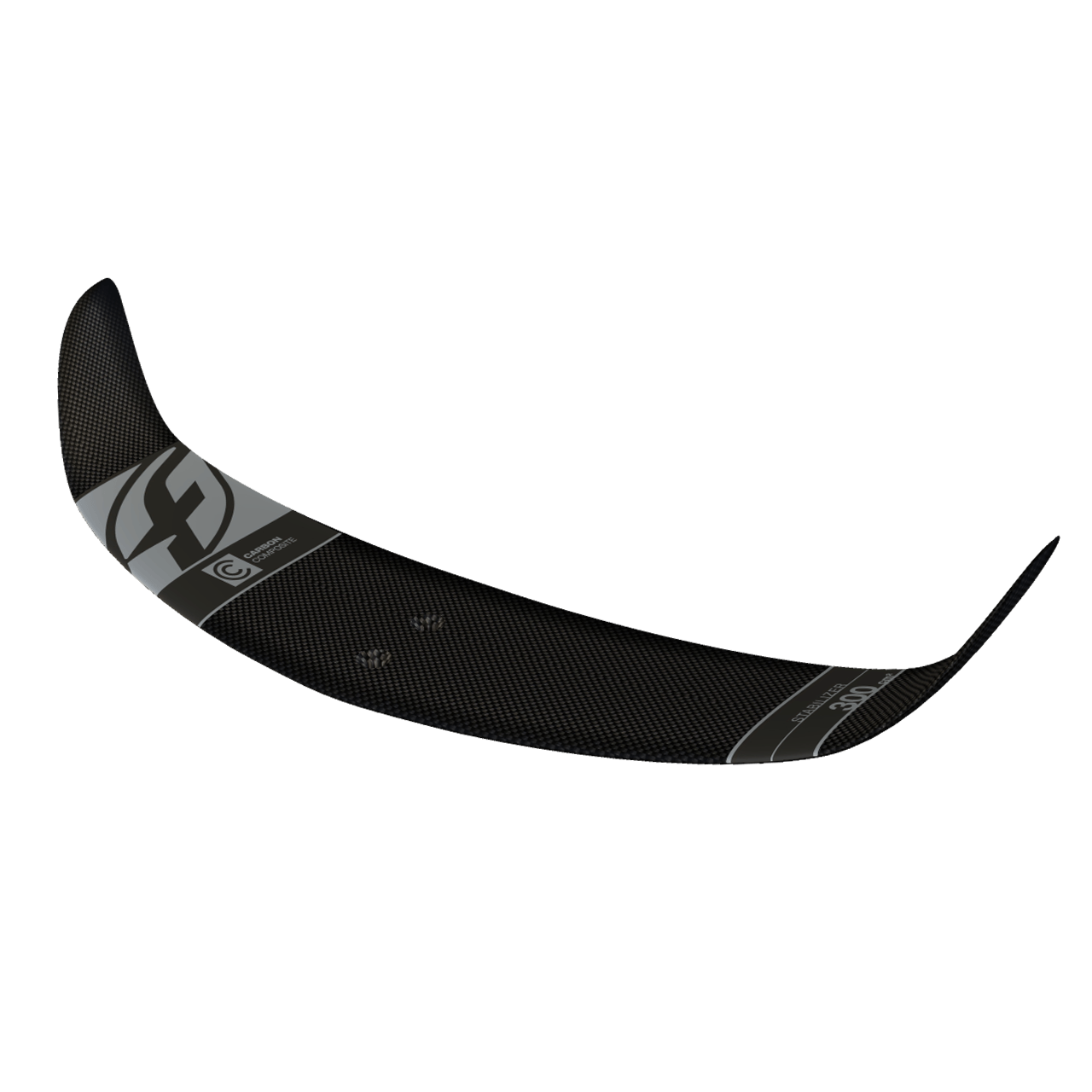

Equipped with generous winglets, the stabilizer blade offers fantastic control with enough surface area to provide full confidence in all situations.
Built in Carbon Composite and designed to be securely mounted on F-ONE fuselages, its profile and angle of incidence were tuned to achieve a very intuitive balance which will help you get your foiling maneuvers in more easily.
