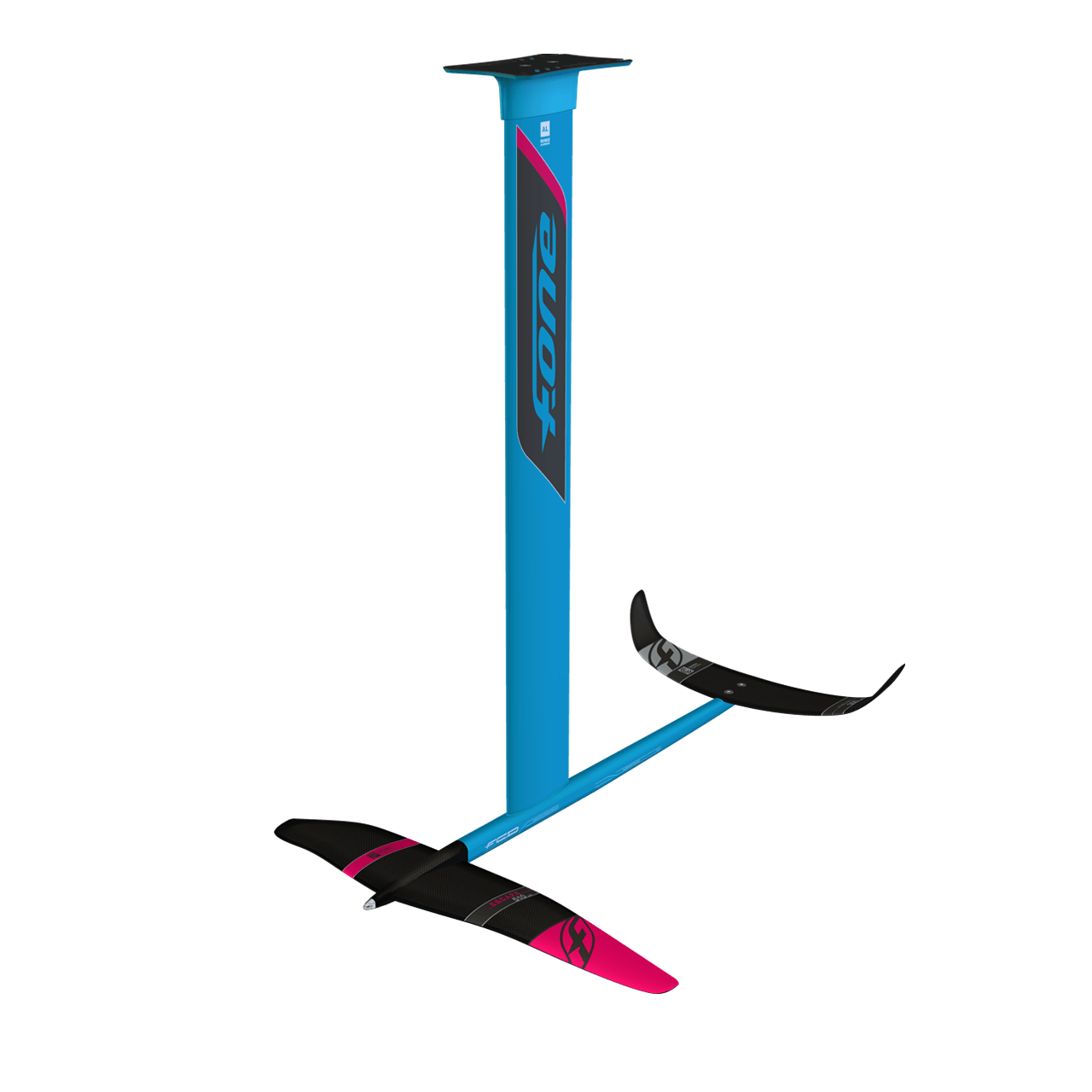

ESCAPE

Produced from an extrusion process, our aluminum profiles make the most of this homogeneous material to provide perfect stiffness both in torsion and bending. All areas in contact with other metals or carbon parts are duly isolated against galvanic reactions.

Machining blocks of aluminum 6061 guarantees the maximum accuracy and preserves the mechanical properties of this higher grade of aluminum. All parts are fully anodized and stainless-steel inserts are fitted with insulating gel when fastening is required.

The main benefit of the system lies in the main screw that maintains the front wing with the rest of the foil. This screw is placed longitudinally and is therefore only stressed in tension instead of shear or bending. The whole foil can be tightened up with everything working in a sound mechanical way.

To gain some precision, robustness and packed-up volume, the screw is combined with a squared, conical assembling system, which has been proven as the best mechanical setup to lock any motion or degree of freedom between the parts, while also contributing greatly to tensional resistance.

Quality control is much better and so is the working environment for the people building our foils. Pre-preg fabrics offer the lightest weight with the best mechanical properties of carbon fiber.

Its profile and area have been tailored to provide enough power for the upwind legs without restraining the downwind speed. Its flat arch and twisted profiles make it very tolerant, even when operating close to the surface.

The race wing benefits from the same reliable construction in Pre-preg carbon molded over a Forged carbon core for maximum stiffness.

Developed by our best riders to turn the upwind mark first and sail lower and faster down the wind, this wing shows impressive efficiency to dominate the competition.

Area: 510cm²
Aspect Ratio: 6.4
Weight: 0.63 kg

It is made of aluminium 6061, CNC machined with high precision and fully anodized. The TITAN fuselage 60 must be fasten to the mast or mast foot using three M6x25mm tapered head screws.
At the forward end, this fuselage can accept all wings of any size with FCD connectors. Once it is plugged in, the front wing must be fastened with 210mm main rod. A stabilizer can be fastened at the back using two M6x16mm tapered head screws . The craddle for the stabilizer was designed to keep the foil in trim when using F-ONE stabilizers.

Length: 60cm
Weight: 0.61 kg

It is made of 6061 aluminium, CNC machined with high precision and fully anodized. To install the TITAN mast foot, it should be inserted into the bottom end of the aluminium mast and fastened with two M6x25mm tapered head screws.

The profile is extruded with precision from 6063 aluminium block. The shape of its section benefits from our years of experience in kitefoiling to provide the best gliding feel while keeping the strength up and the weight down. It comes with two stainless steel helicoil inserts at the bottom and at the top to fasten the connecting parts and is therefore fully modular. The aluminium mast can be used on every foil of the range and it is very easy to jump from one length to another. A number of parts are available for board connection (Plate, KF, Deep KF, Tuttle).

With their high-performance profile evolving from 1.2 cm thick at the bottom to 1.35 cm at the top, these masts deliver an impressive feeling of glide and top of the range performance. The intricate profile and chord length prevent turbulence and make them very secure and stable at speed. Their elaborate carbon PRE-PREG one-shot molding construction makes sure these masts meet the required demand on torsion and bending stiffness to keep the control of the foil at any moment and especially when pushing hard.

Equipped with a built-in TITAN mast foot, the carbon masts are compatible with all TITAN fuselage our Wings. Available in 65cm length with tuttle head and lighter layup or in 85cm, 95cm and 105 with stiffer layup including some high modulus carbon and a deep tuttle head.

Section thickness: 12mm (bottom) / 13.5mm (top)
Section chord: 110mm (bottom) / 135mm (top)

Equipped with generous winglets, the stabilizer blade offers fantastic control with enough surface area to provide full confidence in all situations.
Built in Carbon Composite and designed to be securely mounted on F-ONE fuselages, its profile and angle of incidence were tuned to achieve a very intuitive balance which will help you get your foiling maneuvers in more easily.
